Long Range Fuel Tanks are available for almost every 4WD and vehicle. Search our website to see if your vehicle is listed.

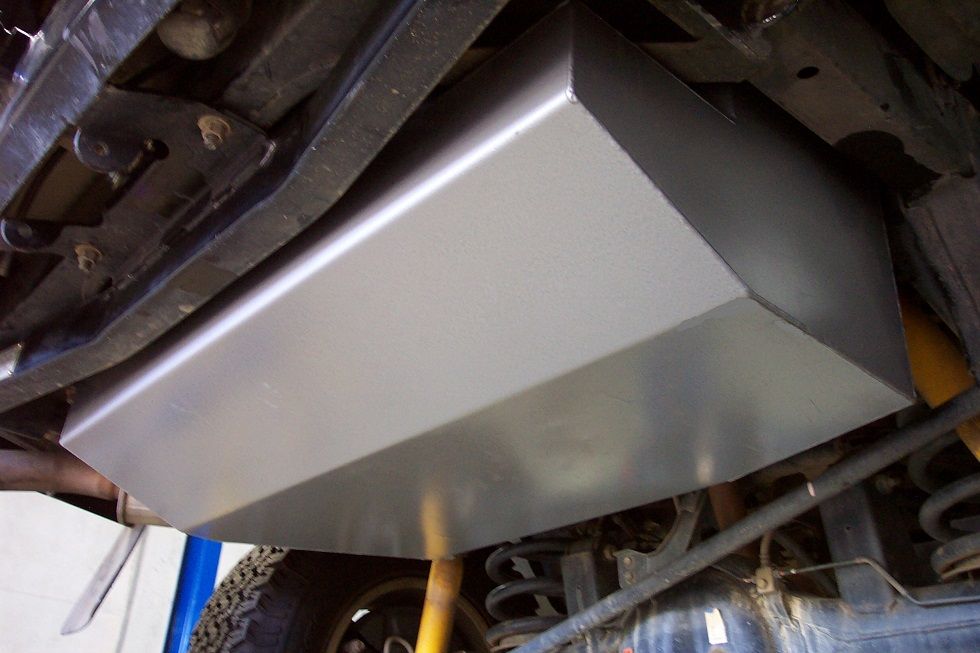

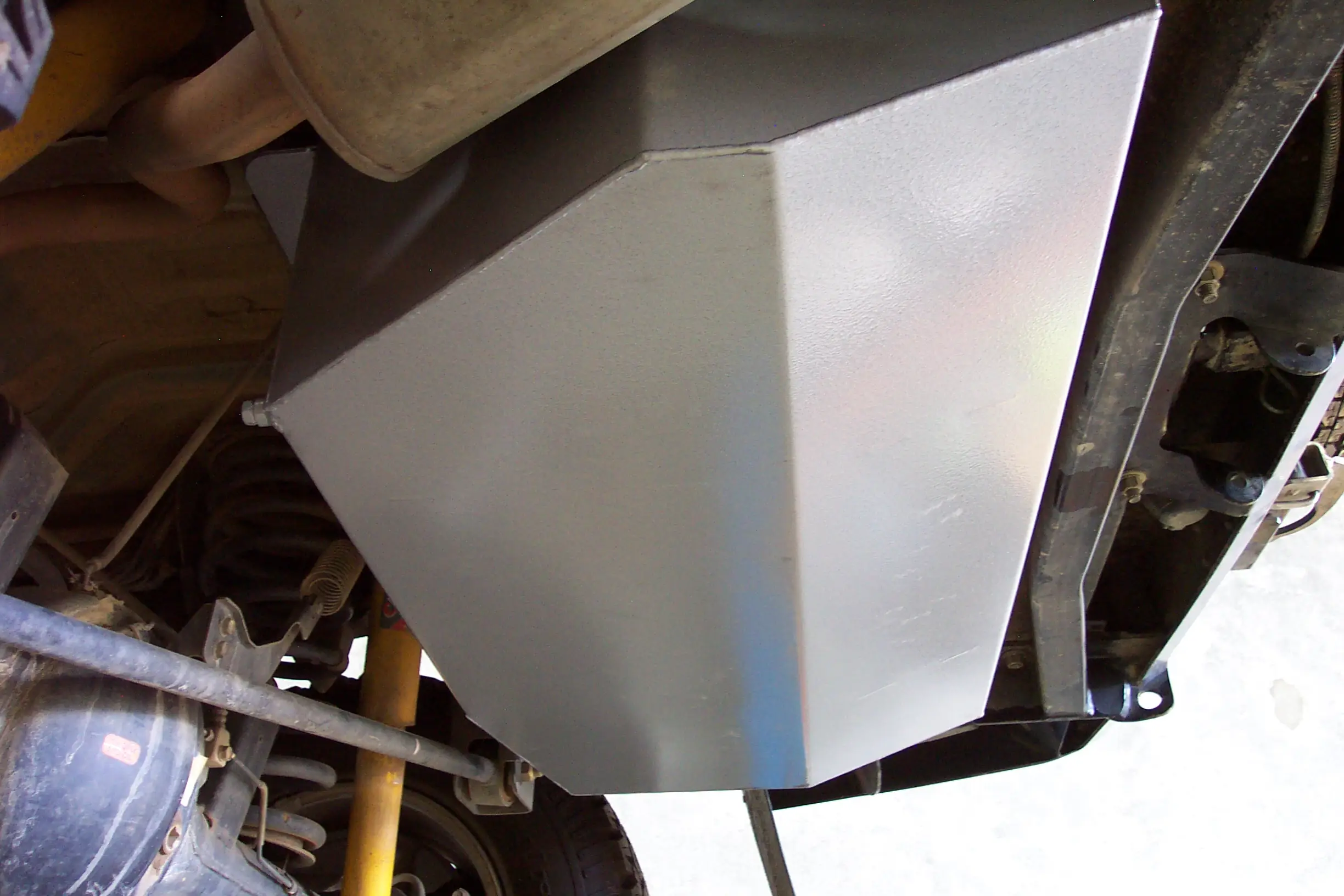

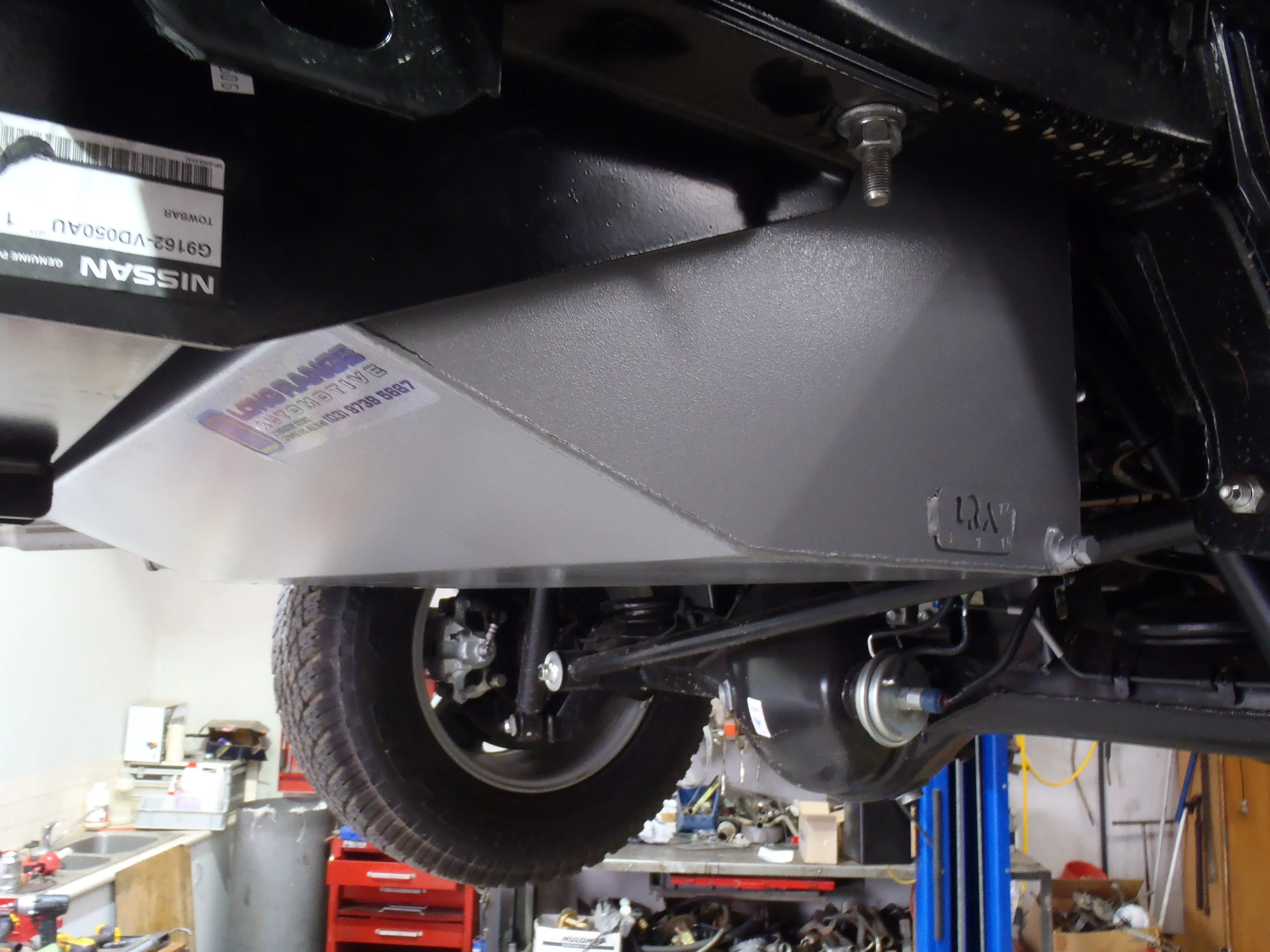

To Suit Nissan Patrol GU - 146L Replacement Fuel Tank
Specifications
| Part Number | NPGUR |
| Tank Type | Replacement |
| Tank Note | |
| On 1998-2000, check the OE fill hose size, if it is the same both ends, you will need the hose from the later model (02/2000 onwards), the part number #17228-VB00. | |
| Exhaust | STANDARD |
| Location | Behind Rear Axle |
| Fill Point | STANDARD |
| Capacity | 146 Litres |
| Fitting Time | 3 Hrs |
| Fitting Notes | |
| This tank will not fit with the ARB rear wheel carrier. If the vehicle has a Kaymar rear wheel carrier fitted and LRA installing, this will incur additional labour charges. This tank uses original parts, including but not limited to the sender unit and pump assembly, if you are removing a gas system, you will need to source these additional parts yourself. Please contact us prior if you want LRA to install. | |
| Relocate Spare | NO |
| Vehicle Notes | |
| Replaces Main Tank | |
Shipping Dimensions
| Height | 52 cm |
| Width | 65 cm |
| Length | 110 cm |
| Weight | 48 kg |
Applicable Vehicles
| Make | Model | Start Year | End Year | Series | Fuel | Body | Drive | Relocate Spare |
| To Suit Nissan | Patrol | 1998 | 2016 | GU | Diesel | Wagon | 4WD | NO |
| Replaces Main Tank | ||||||||
| To Suit Nissan | Patrol | 1998 | 2014 | GU | Petrol | Wagon | 4WD | NO |
| Replaces Main Tank | ||||||||
| To Suit Nissan | Patrol | 1998 | 2016 | GU | Diesel | Coil Cab Chassis | 4WD | NO |
| Replaces Main Tank | ||||||||
| To Suit Nissan | Patrol | 1998 | 2014 | GU | Petrol | Coil Cab Chassis | 4WD | NO |
| Replaces Main Tank | ||||||||
