Long Range Fuel & Water Tanks are available for almost every 4WD and vehicle. Search our website to see if your vehicle is listed.
To Suit Toyota Landcruiser VDJ78 - 90L Stainless Water Tank
See exhaust notes. See fitting notes. See tank notes. Will NOT fit the 2.8L model.
Specifications
| Part Number | TLC78V8SSW |
| Tank Type | Water |
| Tank Note | |

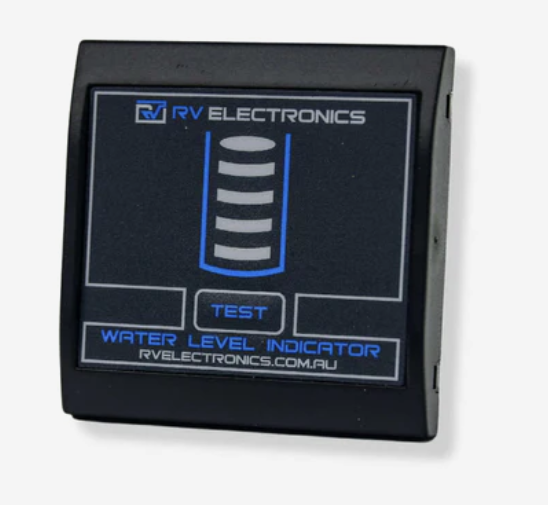

| The tank is fitted with a 1/2" outlet which is suitable for a 12V pump connection. We need to know at the time of ordering if you require the sender probe, as the tank requires a hole during manufacturing. A water level indicator and sender probe to suit are additional, optional extras. | |
| Exhaust | MODIFY |
| Exhaust Note | |

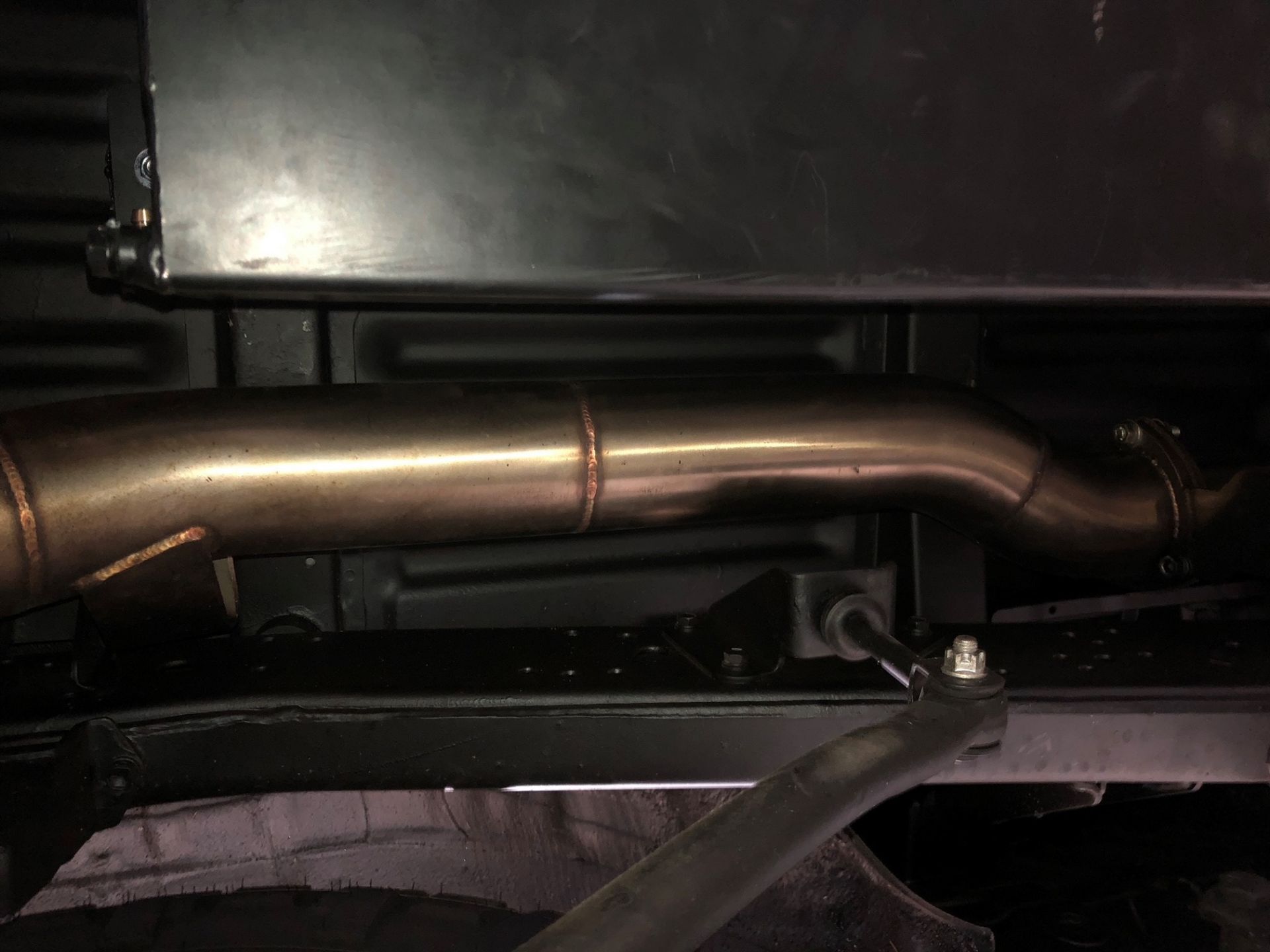

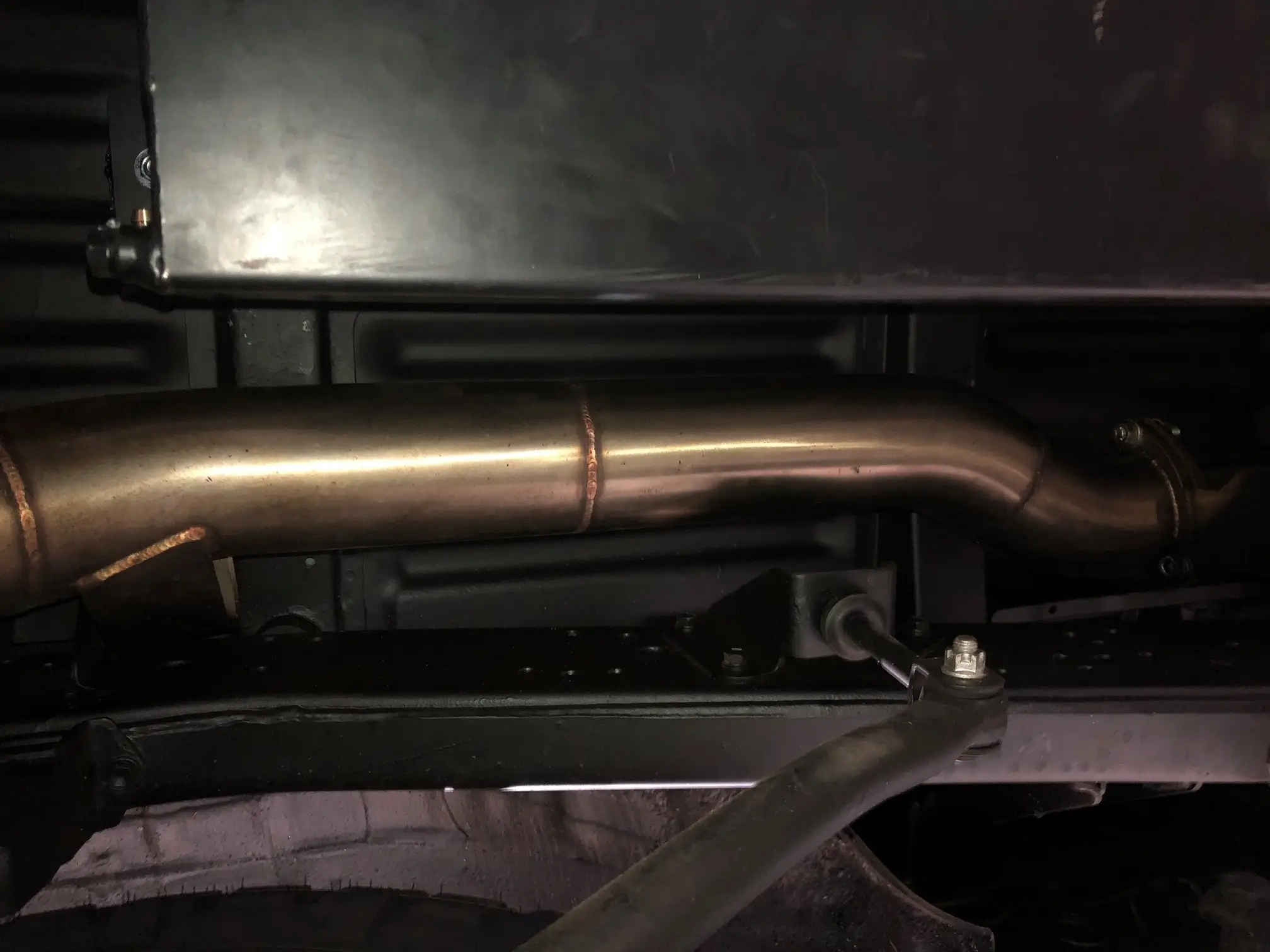

| The STANDARD exhaust requires modification, this includes replacing the muffler, we do not supply this in the kit and will need to be outsourced yourself. If LRA are installing, we can modify for an additional cost. The gap between water tank & the chassis is 200mm wide for exhaust to pass through. We have confirmation this tank tits with a Torqit 3.5" exhaust without modification. | |

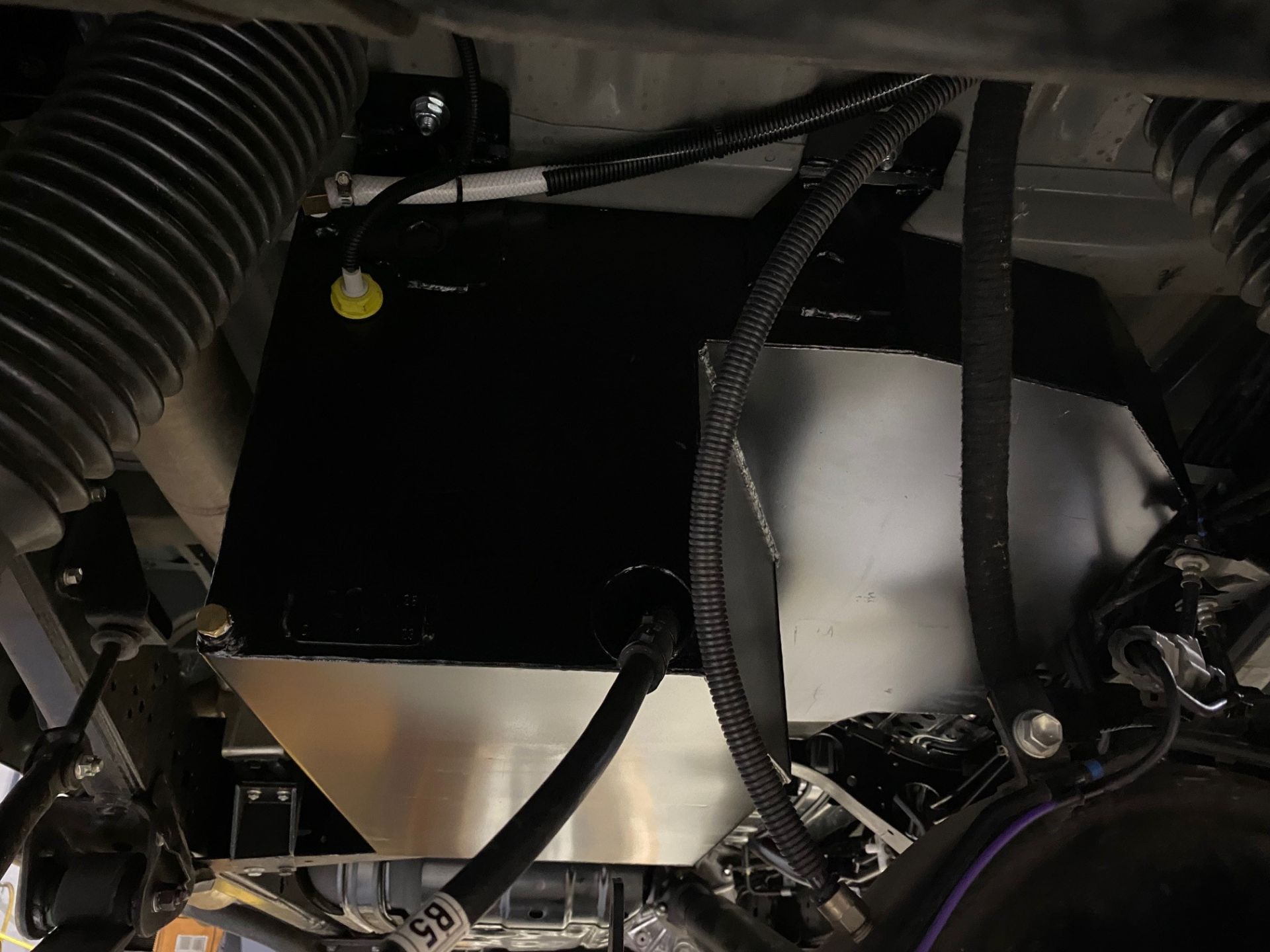

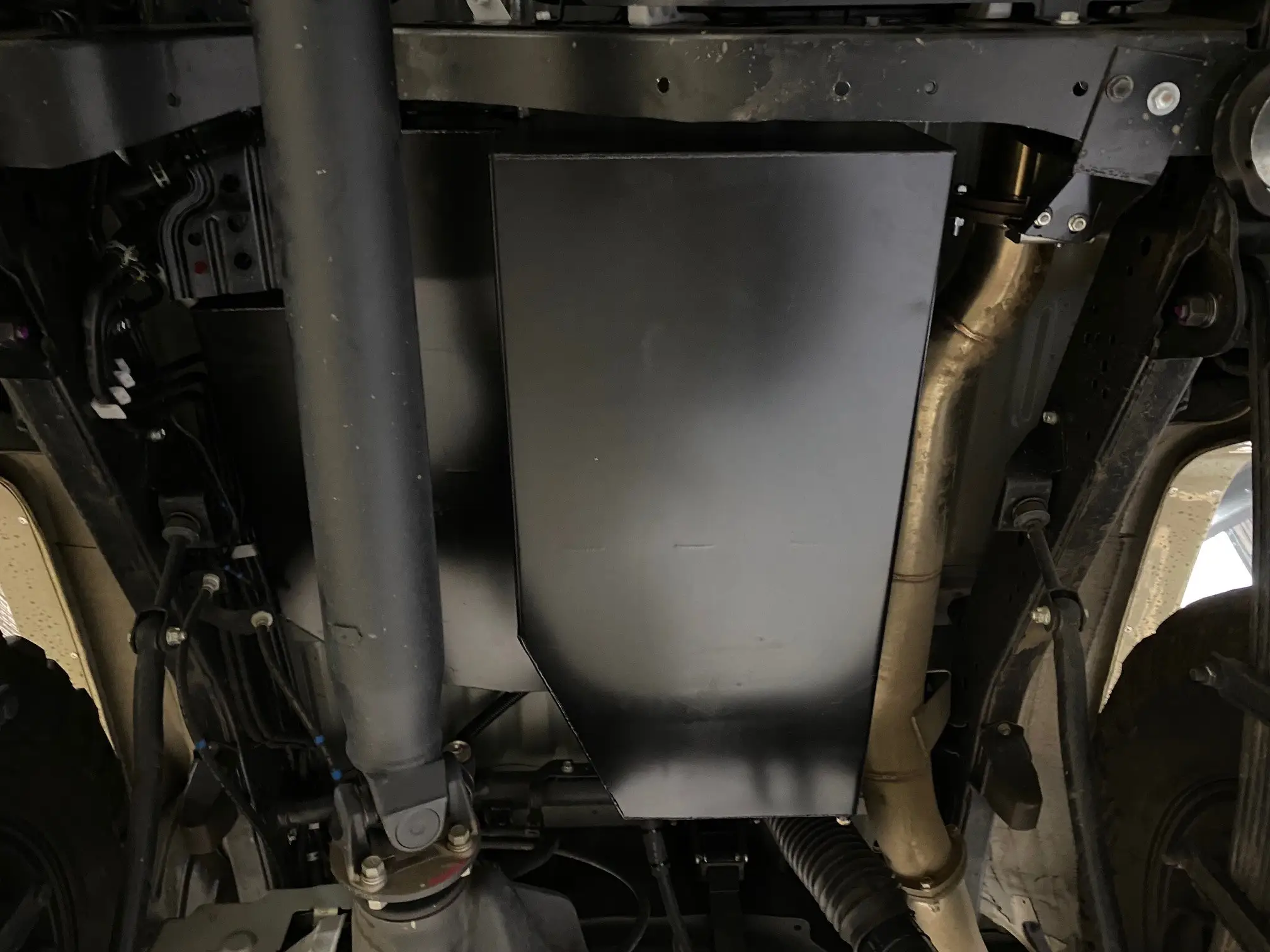

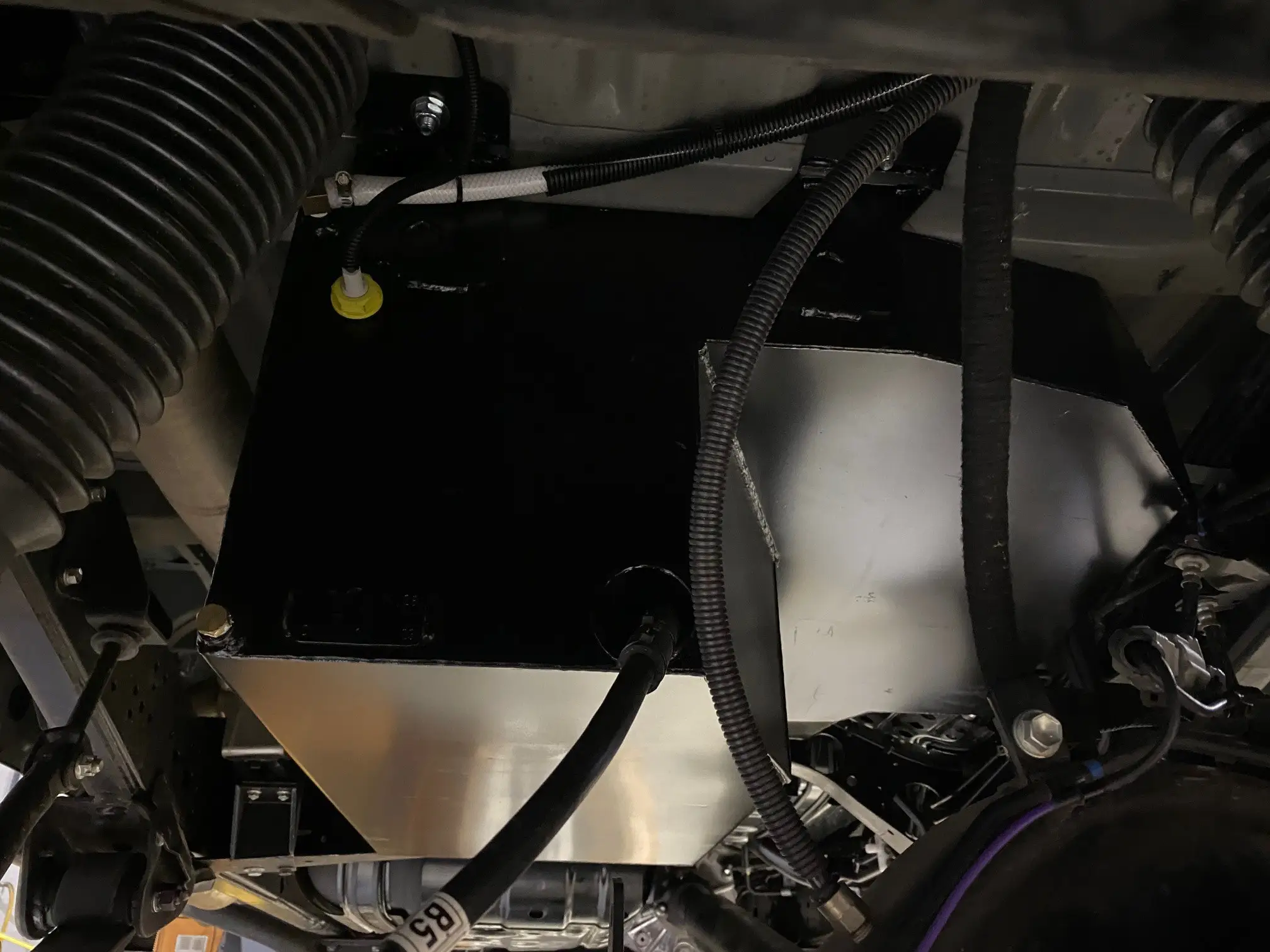

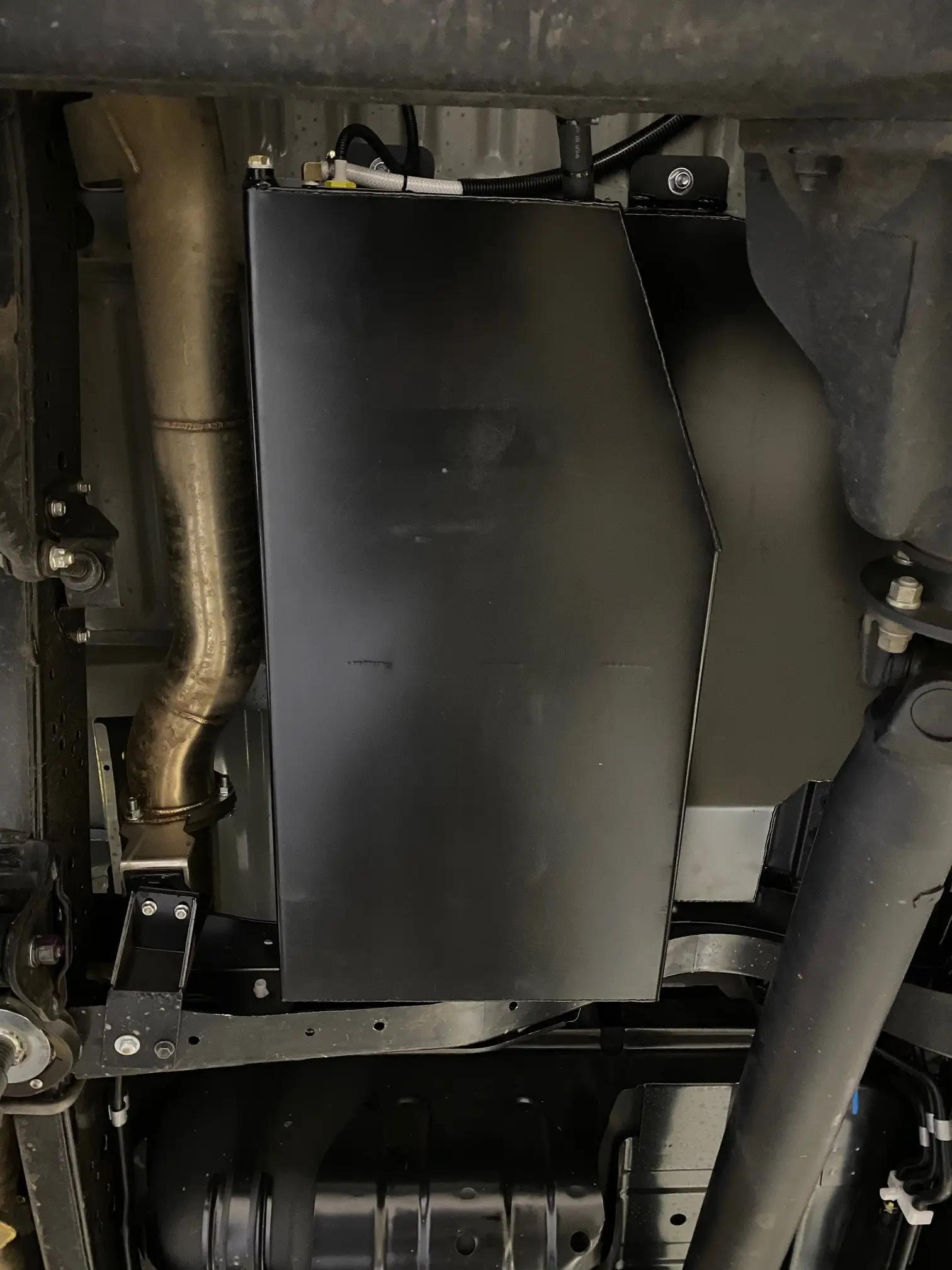

| Location | LH Side of Drive Shaft |

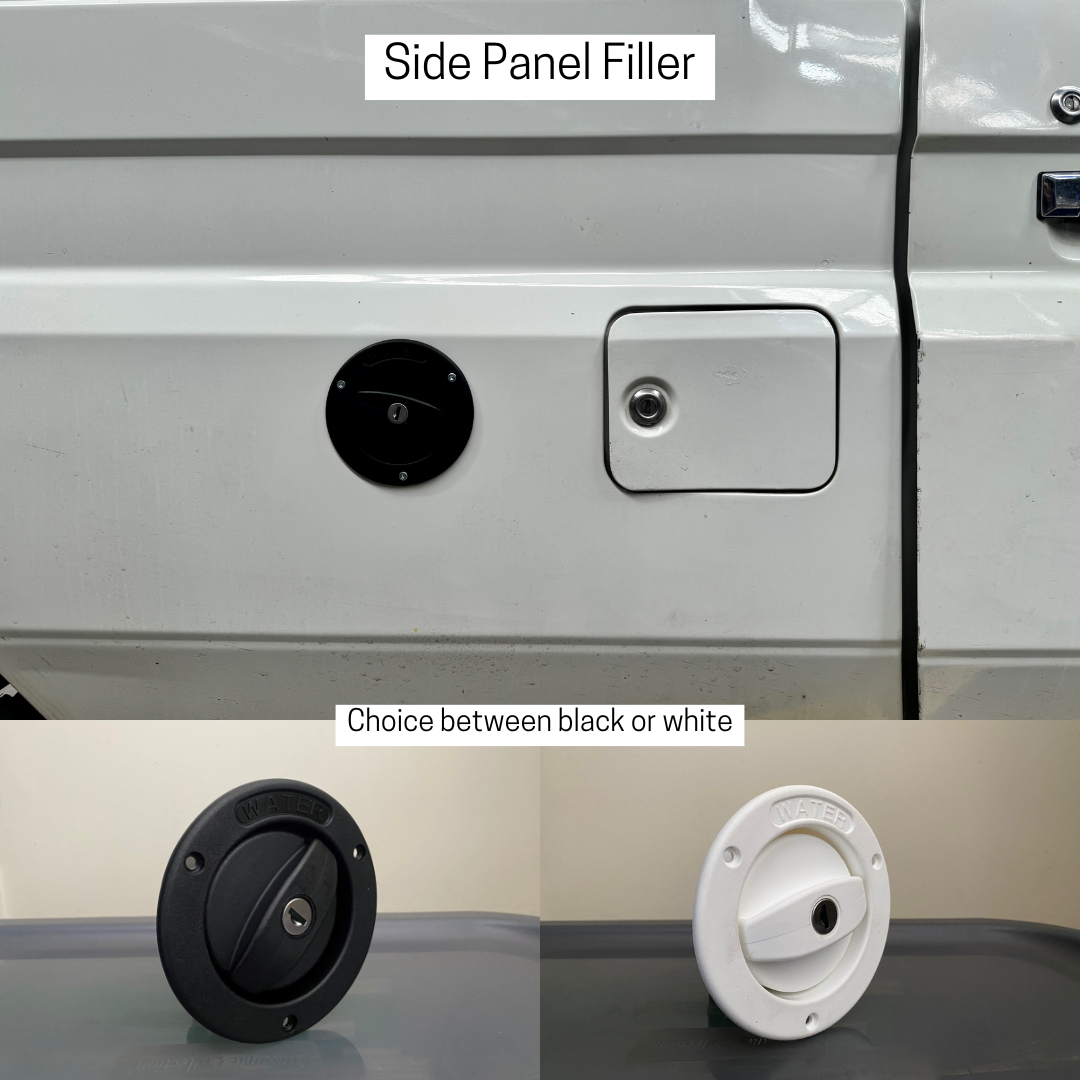

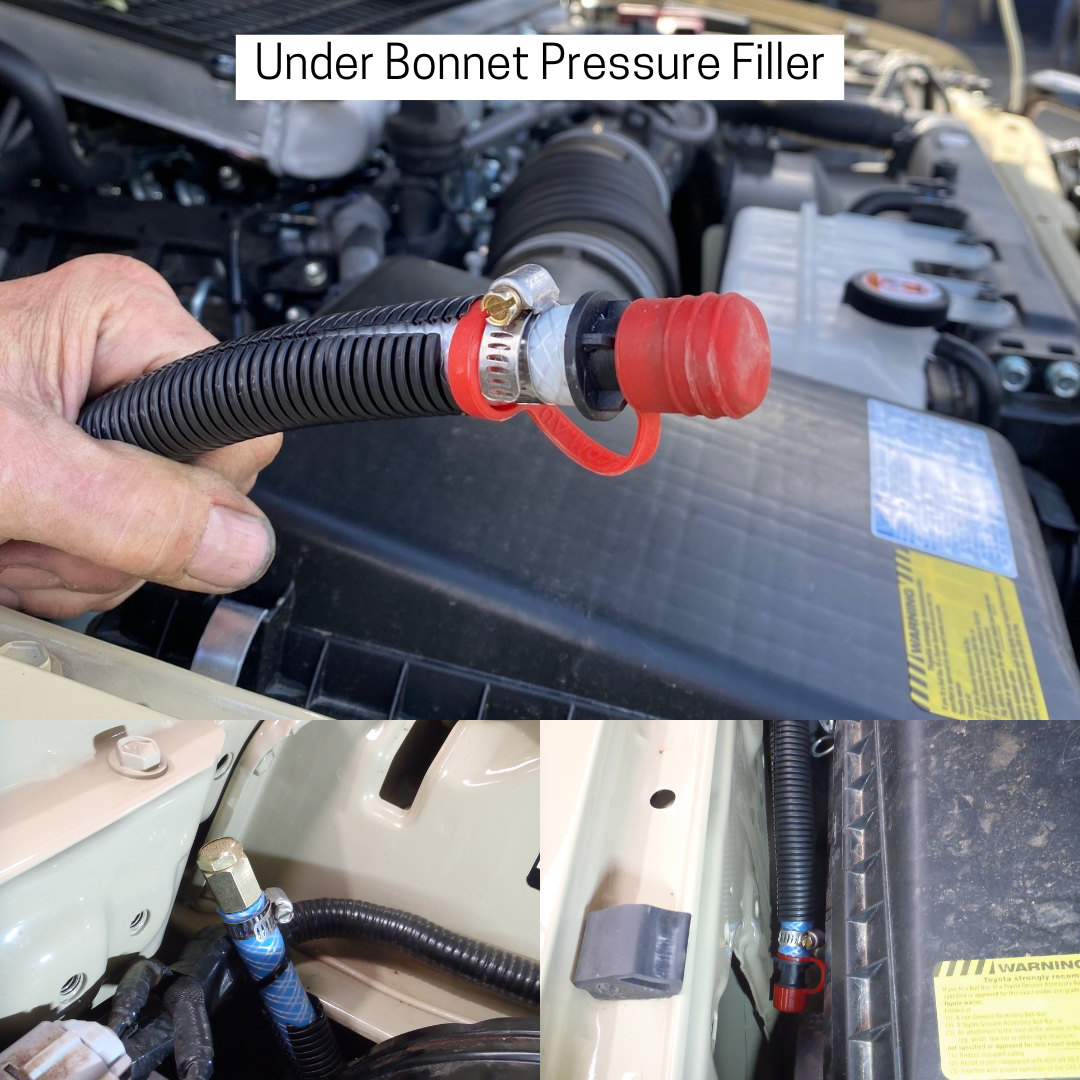

| Fill Point | Panel or Bonnet |
| Capacity | 90 Litres |
| Fitting Time | 4.0 Hrs |
| Fitting Notes | |
| The tank requires clear floor access inside the vehicle for installation to be completed, any internal fitout would need to be removed prior to tank installation. Exhaust modification is an additional cost if LRA are installing. | |
| Relocate Spare | NO |
| Vehicle Notes | |
| * See Applicable Vehicles | |
Shipping Dimensions
| Height | 50 cm |
| Width | 70 cm |
| Length | 85 cm |
| Weight | 39 kg |
Applicable Vehicles
| Make | Model | Start Year | End Year | Series | Fuel | Body | Drive | Relocate Spare |
| To Suit Toyota | Landcruiser | 2007 | 2023 | VDJ78 | Diesel | Troopy | 4WD | NO |
| Fits Single & Twin Tank Models. Will NOT suit JMACX Coil Conversion | ||||||||
| To Suit Toyota | Landcruiser | 2024 | 2024 | VDJ78 | Diesel | Troopy | 4WD | NO |
| Fits Single & Twin Tank Models. Will NOT suit JMACX Coil Conversion. Will not fit the 2.8L 4 Cylinder Troopy. | ||||||||
