Long Range Fuel Tanks are available for almost every 4WD and vehicle. Search our website to see if your vehicle is listed.
To Suit Toyota Landcruiser GDJL78R - 90L Stainless Steel Water Tank Fuel Tank
Standard exhaust needs to be modified, see notes. A water level indicator & sender to suit are additional, optional extras. Tank is fitted with a 1/2" outlet for 12V pump connection.
Specifications
| Part Number | TLC78SSW2.8 |
| Tank Type | Water |
| Tank Note | |
| This tank is only suitable for clean potable drinking water. The tank is fitted with a 1/2" outlet which is suitable for a 12V pump connection. We need to know at the time of ordering if you require the sender probe, as the tank requires a hole during manufacturing. A water level indicator and sender probe to suit are additional, optional extras. The filling method for this tank is via an under bonnet pressure filler only. No confirmed fitment on the GRJ78 V6. | |
| Exhaust | MODIFY |
| Exhaust Note | |
| The standard exhaust requires modification, this includes replacing the muffler & welding is required. We can supply this for an additional cost, the part number is #TLC78SSW2.8EM. It will fit with a Torqit HS8224SS 3.5” DPF-Back Exhaust | |

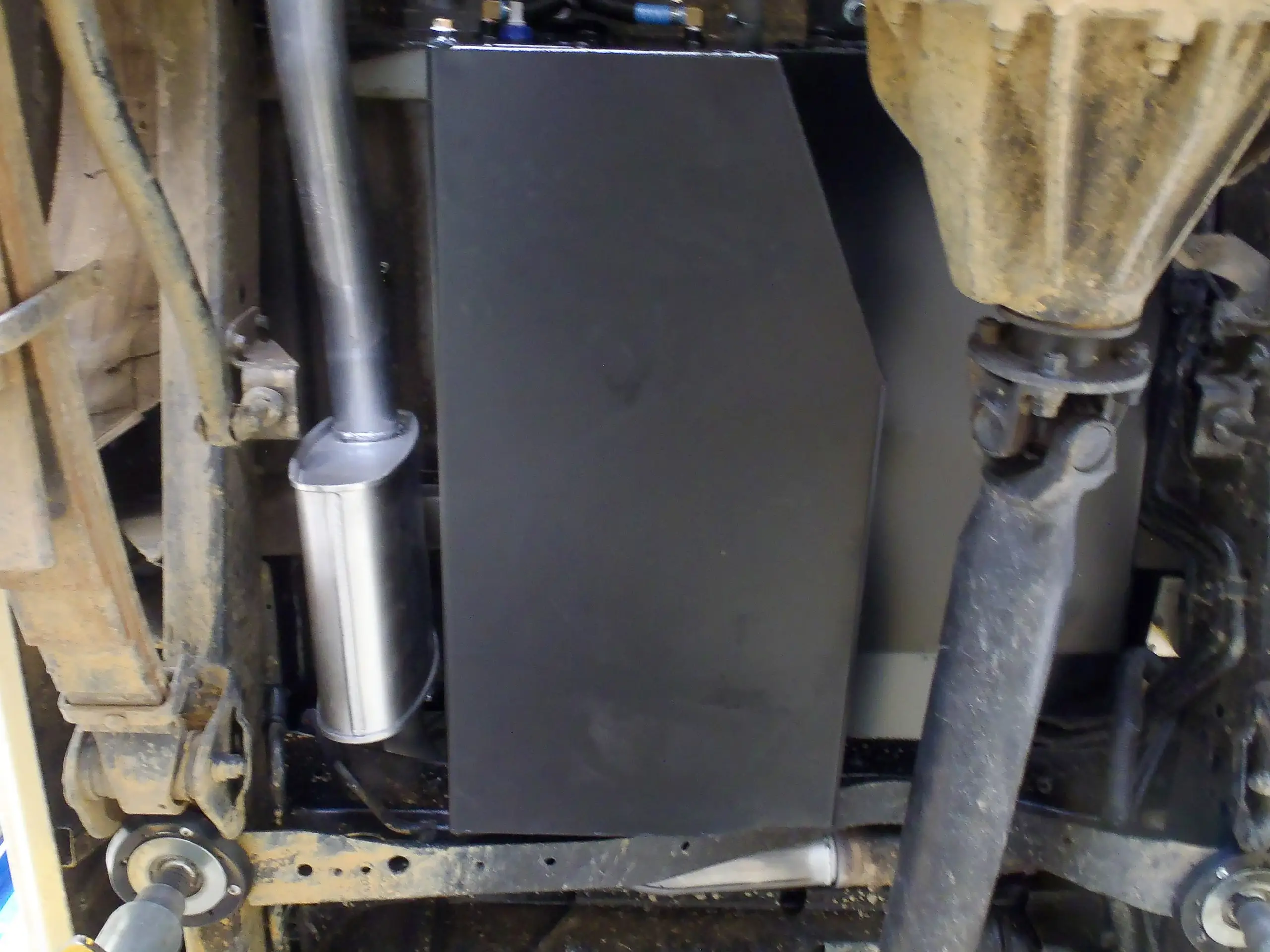

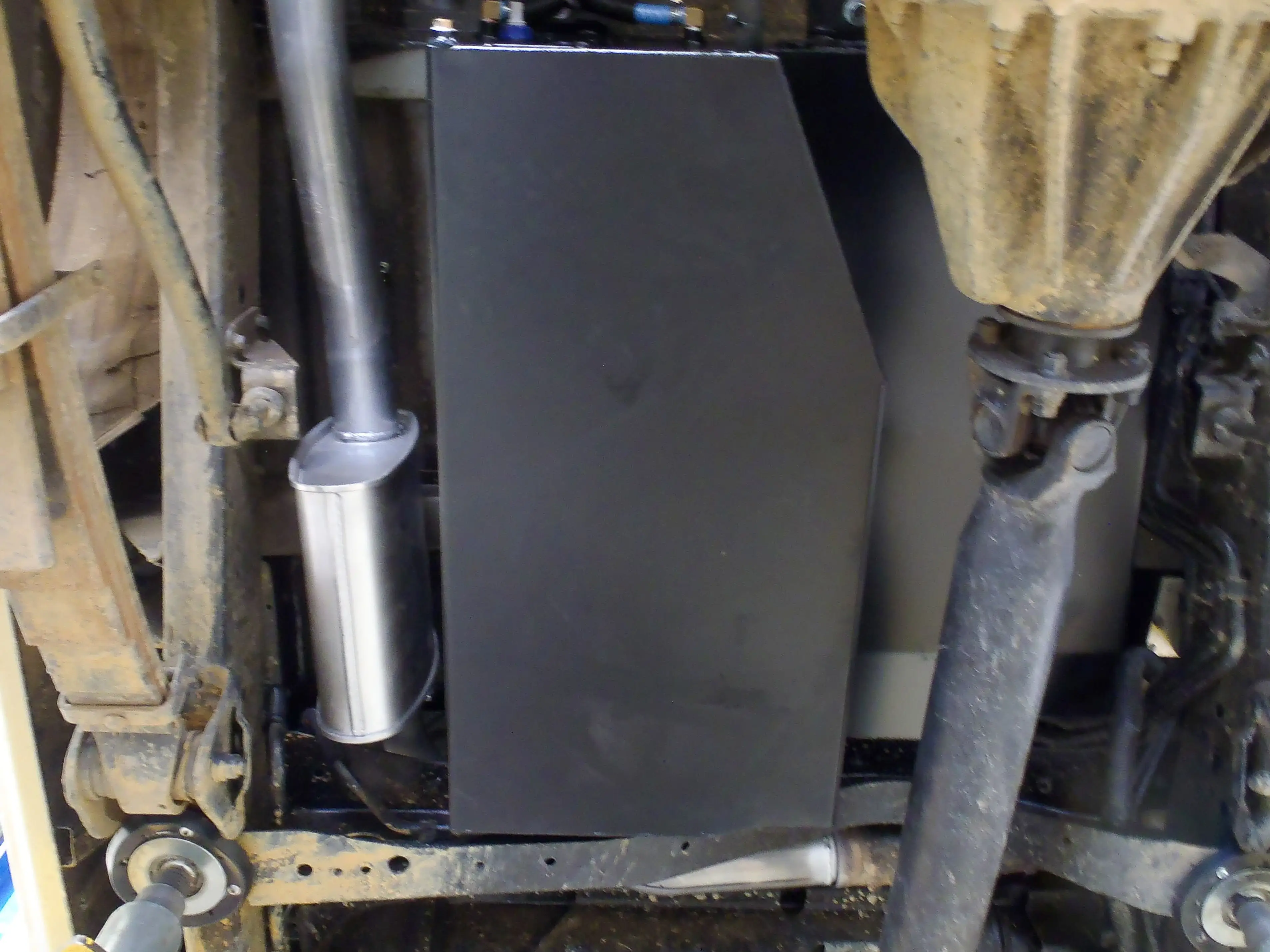

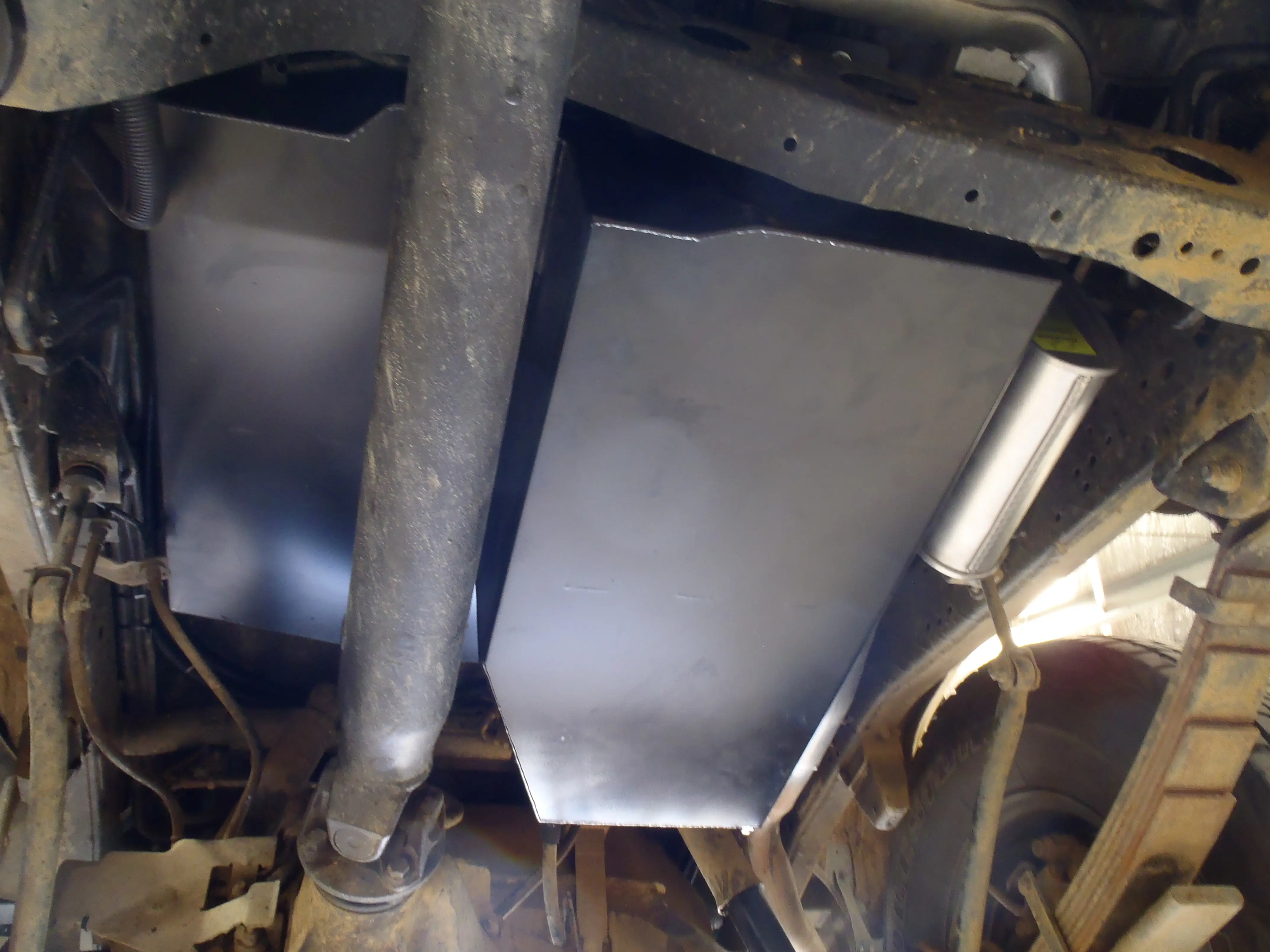

| Location | LH Side of Drive Shaft |
| Fill Point | Bonnet Filler |
| Capacity | 90 Litres |
| Fitting Time | 4.0 Hrs |
| Fitting Notes | |
| Clear floor access is required for installation of the tank, any internal fitout would need to be removed for installation. Exhaust modification is an additional labour charge if LRA are installing. | |
| Relocate Spare | NO |
| Vehicle Notes | |
| Fits Single & Twin Tank Models. Will NOT suit JMACX Coil Conversion. No confirmed fitment on the GRJ78 V6. | |
Shipping Dimensions
| Height | 56 cm |
| Width | 65 cm |
| Length | 90 cm |
| Weight | 46 kg |
